Description

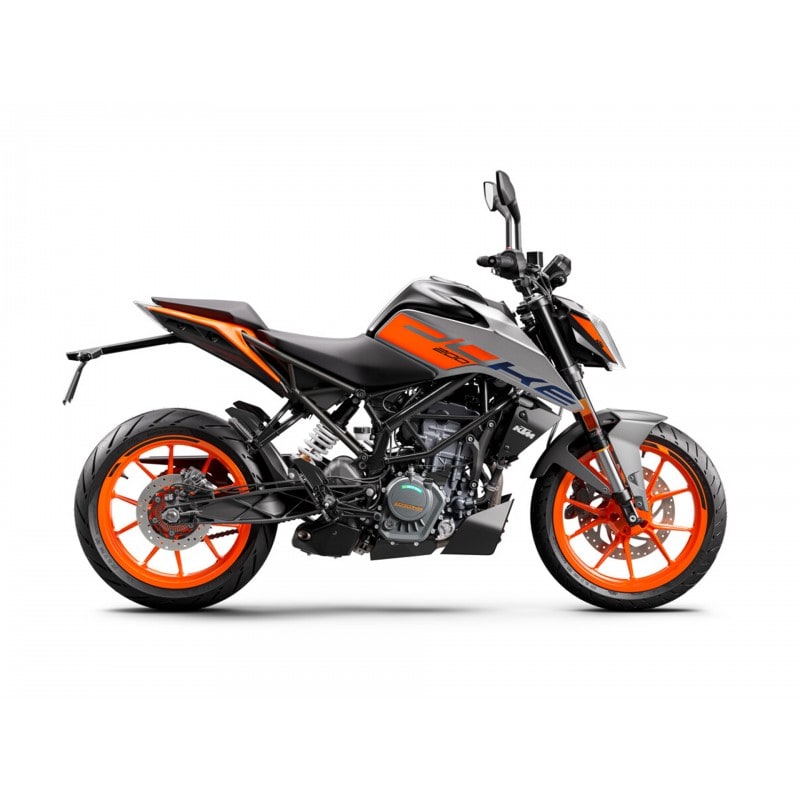

KTM 200 DUKE 2024
ORANGE or grey

TECHNOLOGY

• LED running light surrounding bright halogen headlight
• LED blinkers and tail lamp
• LCD monochrome digital display showing gear in mesh, fuel, service reminder etc

DRIVETRAIN

• 25hp, 19kW, 19.5Nm
• Peak power at 10,000rpm
• Peak torque at 8,000rpm
• 1 cylinder, 4 stroke, fuel injected
• Liquid cooling
• Electric starter
• Bosch Engine Management System
• Four valves per cylinder
• Two overhead camshafts
• Carbon coated cam followers
• Three chamber exhaust silencer
• 6 speed transmission
• Wet multi-disc clutch, mechanically actuated
• WP APEX 43 front USD (Upside Down) forks
• WP APEX progressive mono shock rear suspension
• 150mm suspension travel, front and rear
• Front 4-piston radial fixed brake calliper by BYBRE
• Rear single piston floating brake calliper by BYBRE
• BYBRE is a company under control of Brembo
• Bosch 10MB Two Channel ABS with supermoto mode
• 17″ cast alloy wheels
• 110mm wide front tyre
• 150mm wide rear tyre

BODY

• Steel trellis frame, powder coated
• Two part seating, supporting rider and pillion
• Steel fuel tank shaped for perfect knee contact
• READY TO RACE design cue’s unmistakably Duke

MEASUREMENTS

• 300mm front brake diameter
• 230mm rear brake diameter
• 150mm front suspension travel
• 150mm rear suspension travel
• 170mm ground clearance
• 810mm seat height
• 140kg dry weight
• 13.5L fuel capacity
